Mount it your way

Roof-top tents

The tent is already up there. Set the flat hooks into its channel or L-track, or clip the Universal Mounts to L-track eyes, and the awning shades the ladder, the door or the tailgate under the tent.

Hardware you use

Universal Mounts (included)
Standard Top Mounts (included)
Bottom flat hooks (included)

Shop AirHaven 40 See it in the field

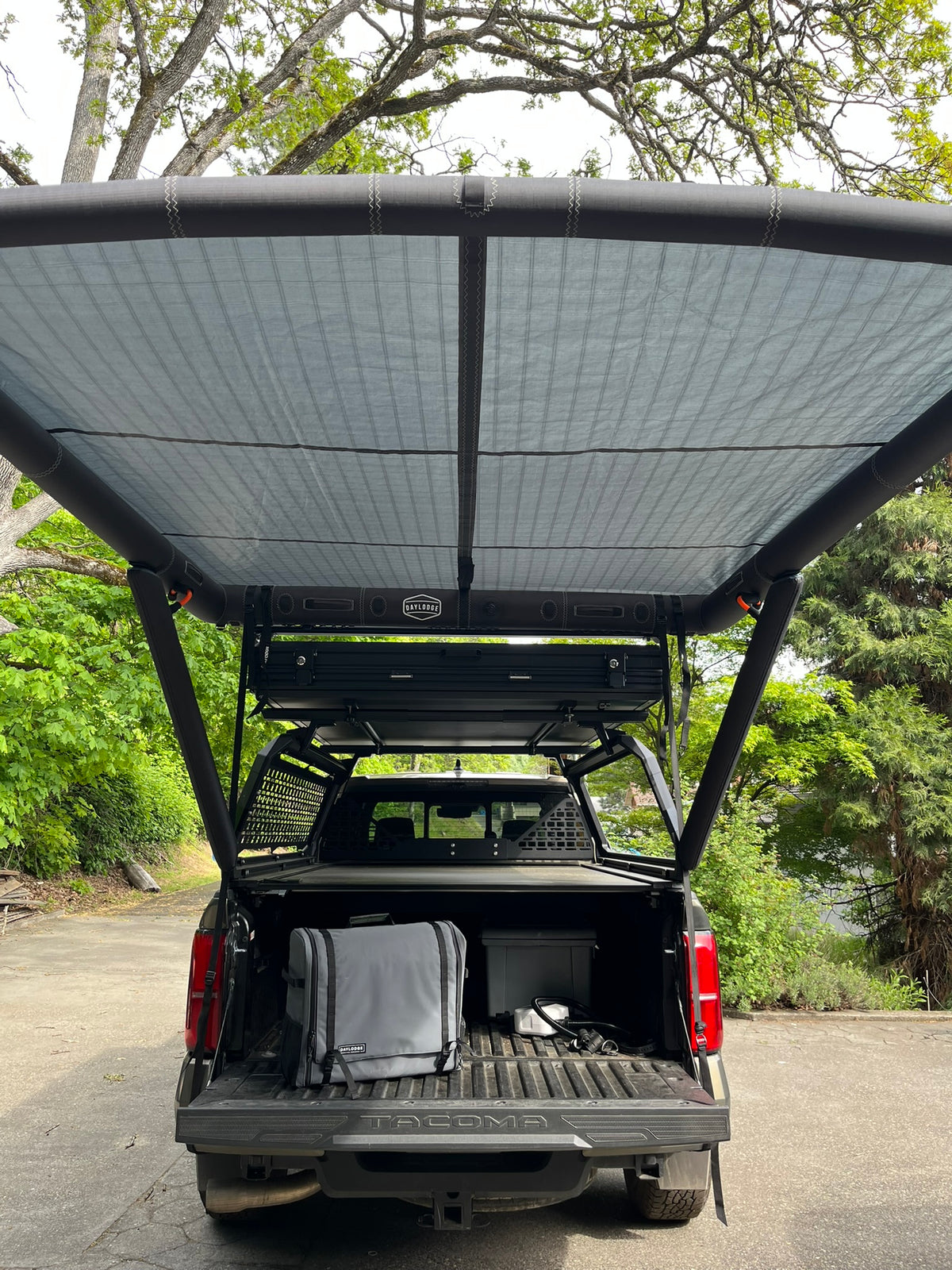

Toyota Tacoma

Set up on

Toyota Tacoma
Subaru

How it attaches

Inflate. Attach. Enjoy.

Four steps, no tools. Every AirHaven ships with the hardware below.

Inflate to 8 PSI
Close both strut clamp valves (slide the neoprene gloves off to reach them), or skip them: you can set up without the clamp valves. Pump to 8 PSI with a high-volume pump and a gauge. Max pressure is 8 PSI. Never go over it. If a Gen 4 HR valve sticks or leaks, open and close it a few times to get it working as designed.
Hook the tent's channel or L-track
The flat hook attachments ship already connected to the awning's daisy chain, and you can move them to other spots on it for versatility. Set the flat hooks into the roof-top tent's channel or L-track. They grab and hold better than cord mounts. You can also clip the Universal Mounts to L-track eyes, or wrap them around the tent's base rail or the rack bars it sits on.
Hook and tension the bottom
Seat the flat hooks at the seam where the body meets the chassis and cinch the straps tight. The struts ride on these straps.
Raise the canopy
If you closed the strut valves, open them and the canopy lifts into place, braced against the side of the vehicle on soft pads. Adjust strap tension to tune the pitch.

In the box

Top · racks and bars

Universal Mounts

Webbing straps that clip to or wrap around rack bars and crossbars, and clip to FlexMount D-rings. They ship attached to the awning.

Top · edges and channels

Standard Top Mounts

Rubber-coated flat hooks for slider-door tracks, ledges, gutters, lips, slots, channels and eyelets. They ship clipped to the awning's daisy chain, and you can move them to other spots on it for versatility.

Flat hook securing the strap at the bottom of the vehicle

Bottom · every setup

Tension straps

Flat hooks seat at the seam where the body meets the chassis. The struts slide on the tensioned straps and rest on soft pads against the vehicle.

Tip: Both top mounts ship attached to the awning. Remove the ones you're not using and stow them in the awning bag's pocket.

Advanced user setup

Hang it first, then inflate in place

Once you know your anchor points, skip the inflate-first routine. Hang the awning flat, then fill it right where it hangs with an electric pump.

Pinch off the strut valves first: close both strut clamp valves.
Hang the awning deflated: attach the top mounts and hook the bottom straps.
Connect an electric pump to the inflation valve.
Inflate in place to 8 PSI, watching the gauge.
Open the strut valves to raise the canopy, then tension the straps and tune the pitch.

Max 8 PSI. Never inflate past 8 PSI. Use a pump with a gauge, and set the shut-off to 8 if your pump has one.

Pumps that work →
